Restriction enzyme sites and tooltips

—

by

Chris
in

Quickly viewing the recognition sequence and cut site of a restriction site is very easy in the Map tab.

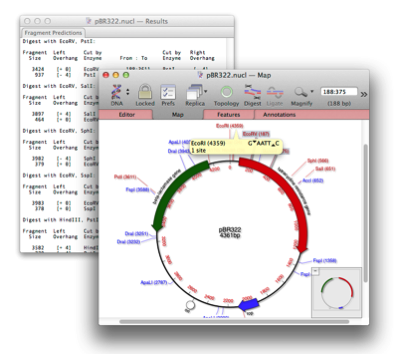

If you hover your mouse over a restriction site in the Map tab, a tooltip will show you the restriction enzyme recognition site, the location of the cut site, and number of times that enzyme cuts your sequence.

  • Make sure Preferences | Map View | Automatic RE Analysis is turned on

    • NewImage

    You can also see the full sequence and cut site when zoomed to sequence level in the Map tab.

  • In the Graphics Palette click the Zoom to Residue button.

    • See this post for further details:
