MacVectorTip: How to Toggle Between Single-Letter and Three-Letter Amino Acid Translation Code

by

in

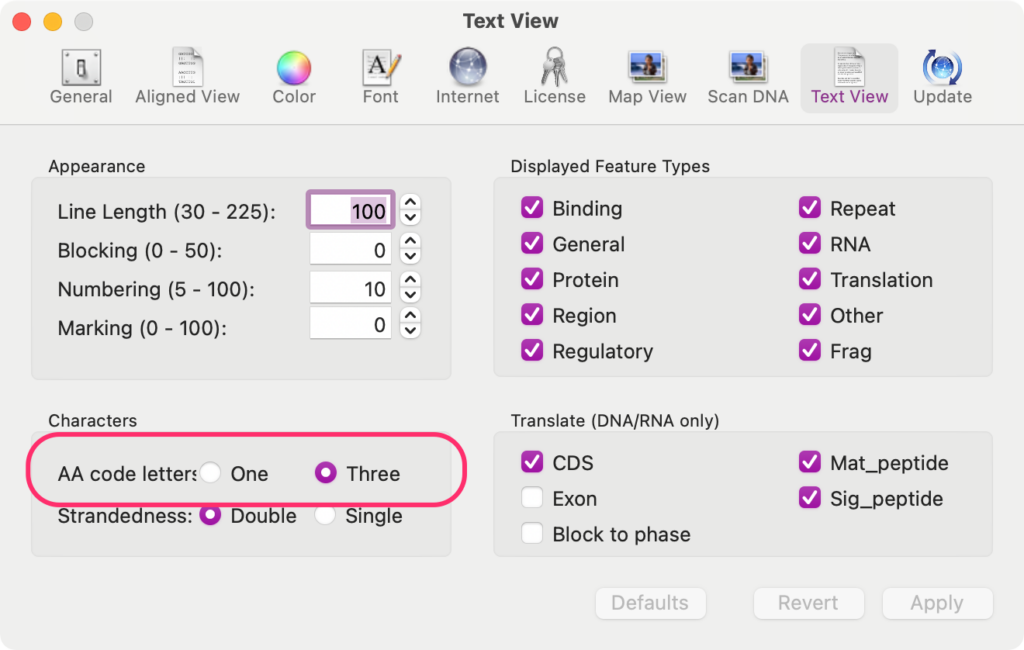

Many views in MacVector display amino acid translations above or below DNA sequences. Typically, these are from CDS features, but can also be the 3/6 frame translation of a sequence. You can display the amino acids as either the single-letter code, or as the three-letter code. You can toggle the setting using the MacVector | Preferences -> Text View pane.

Changes are reflected in many different windows. Here are a few examples.

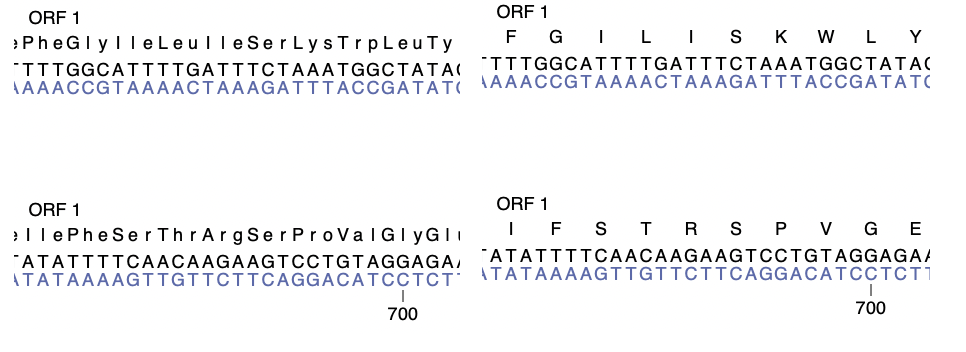

Single Sequence Editor tab

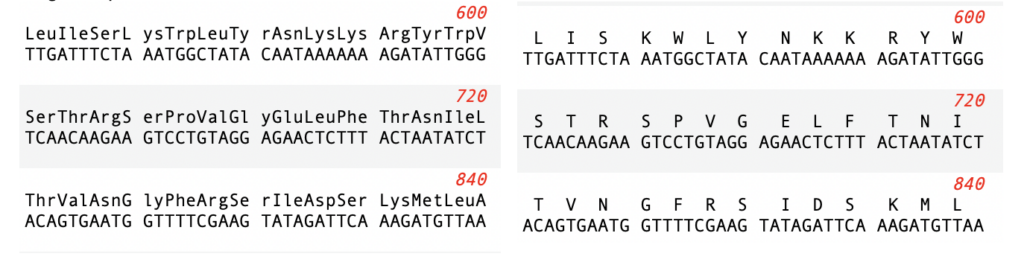

Single Sequence Map tab when zoomed to the residue level.

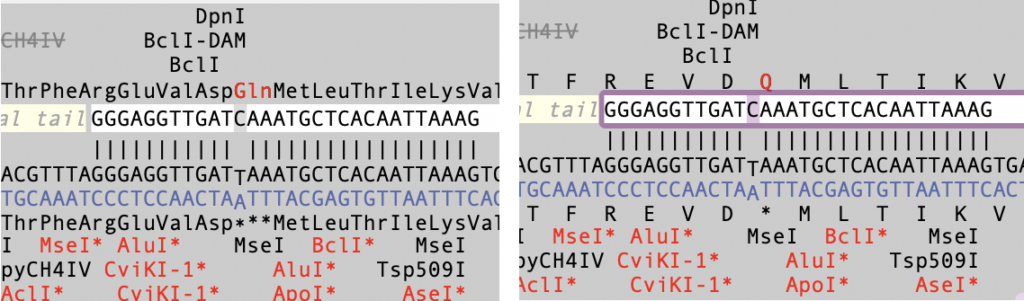

Quicktest Primer window
